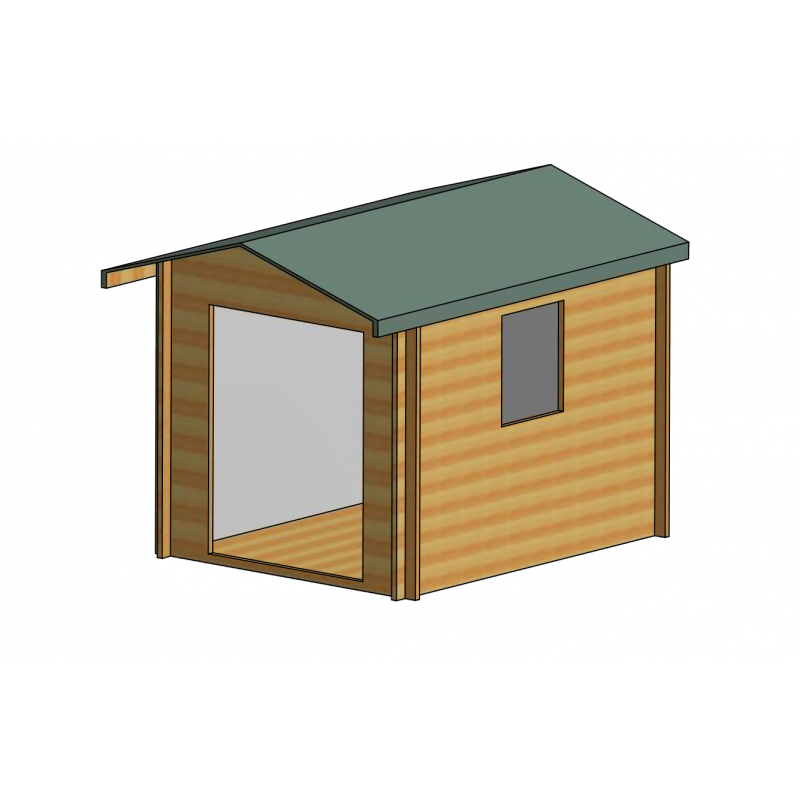

Ashdown 8ft x 10ft



                                                                                                                                                                     Click for HomePage

* Choice of log thickness
* Planning friendly ridge height – max 2.5 mtrs
* Tongue and groove floor included
* Tongue and groove roof
* Draft seal system
* Pressure treated floor joists
* Door and window position may be swapped
* Side window(s) may be added
* Optional toughened glass
* Optional double glazing
* Optional terrace
* Optional verandah
* Optional felt tiles
* Bespoke size service available


Comprehensive accurate and easy to follow assembly instructions are supplied with detail showing where each component fits.
All log components are individually coded to correspond with the codes and detail shown on the assembly instructions.
Specification Buildings are supplied unless stated otherwise with green roofing felt ,standard glass and all fixtures necessary to complete assembly.
Floor joists are supplied properly pressure treated through our in house facilities.
Timber sizes stated are the actual size of the timber after planing and machining. In the 34, 44 & 70mm ranges footprint internal dimensions are for 44mm buildings.
To convert internal dimensions from 44mm to 34mm add on 10mm, to convert 44mm to 70mm take off 26mm.
To convert external dimensions to internal dimensions please use the following conversions: 28mm minus 250mm, 34mm minus 260mm, 44mm minus 280mm, 70mm minus 330mm.
Sizes stated are approximate. When choosing a location for your Pine Lodge allowance should be made for roof overhangs.
It is absolutely essential that the base for the building is level, assembly on an uneven base will negate any claim.
Unless otherwise stated Window Boxes, Roof Tiles, Toughened Glass are all optional extras that may be available please consult price list.

Your Colchester sheds and fencing building will be made to metric measurements.

Imperial measurements are for guidance only.

Approximate delivery period for this product (working days) Usually within 21 days
Cladding (mm) Choice of 28, 34, 44 or 70 mm Logs
Framework Size (mm) N/A
Floor Material 20mm Tongue & Groove
Roof Material 20mm T & G
Door Type 44×58 Double Joinery
Door Handle Mortice Lock
Window Type 1 Opening
Window QTY 1
Range Log Cabins (28, 34, 44, 70 mm)
Door Height (ft) 6’3”
Door Height (mm) 1915
Door Width (ft) 4’11”
Door Width (mm) 1486
Floor Bearers (mm) 38×63
Floor Bearers Pressure Treated yes
Glazing Material Glass
Window Height (Ft) 4’0”
Window Height (mm) 1233
Window Width (ft) 2’1”
Window Width (mm) 633


Additional information

Weight 101 kg
